Description:

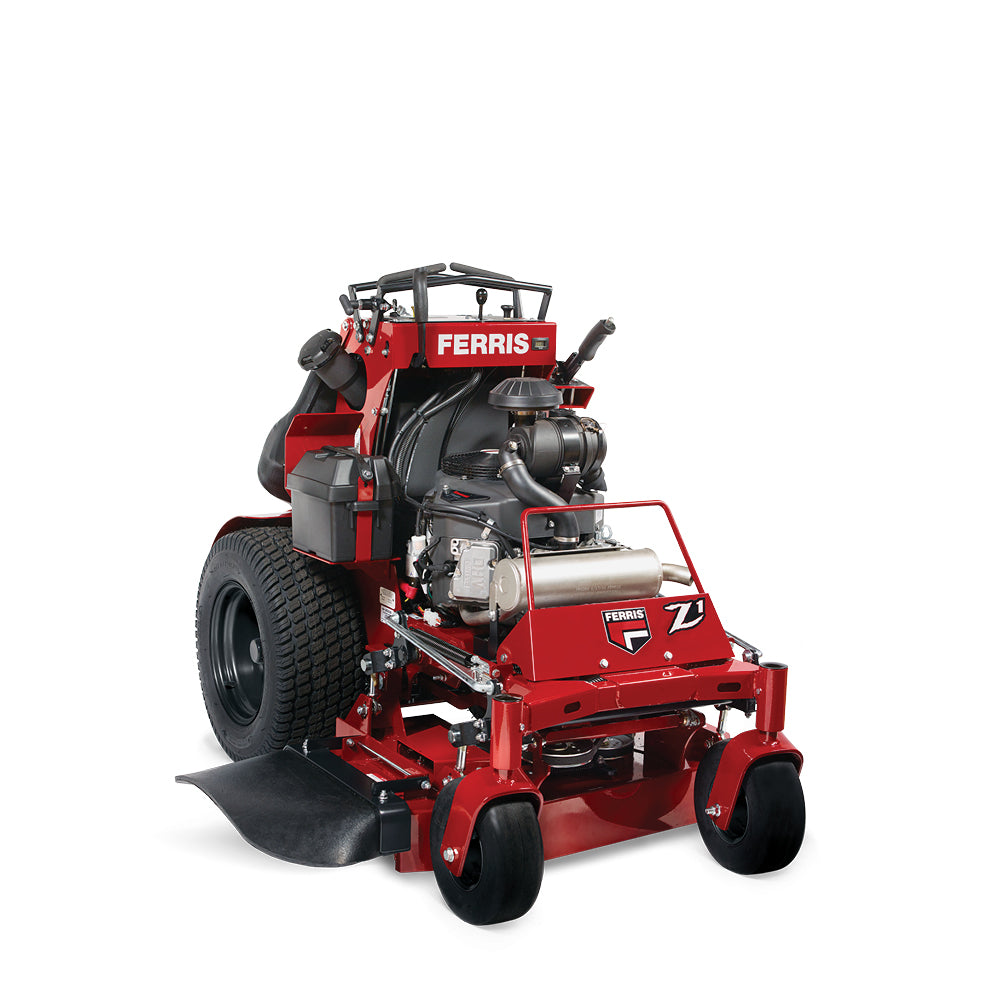

Ideal for tight gates and smaller trailers the SRS Z1 offers excellent productivity in a compact frame. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.

Specifications:

• Brand: Kawasaki® FX600V
• Power Rating: 19 hp
• Displacement: 603 cc
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Tank Capacity: 6 gal
• Deck:
• Size: 36 in
• Cutting Height: 1.75 - 4.5 in
• Spindles: Aluminum Greaseable
• Suspension:
• Adjustable coil-over shock, Operator Suspension Platform
• Transmission:
• Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
• Drive Axles:
• Size: 1.125 in
• Tires:
• Drive Tires: 23 x 8.5-12
• Caster Tires: 11 x 4-5, Flat-free
• Speed:
• Forward: 0-8 mph
• Reverse: 0-4 mph
• Dimensions:
• Overall Length: 65 in
• Overall Width: 49 in (Deflector Down) / 42 in (Deflector Up)
• Dry Weight: 813 lbs
• Seat Package:
• N/A
• Certified Roll-over Protection System:
• N/A
• Instrumentation:
• Dual-function hour meter, fuel level gauge
• Safety Group/Controls:
• Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
• Parking Brake / Safety Circuit:
• Hand-operated internal transaxle brake
