Description:

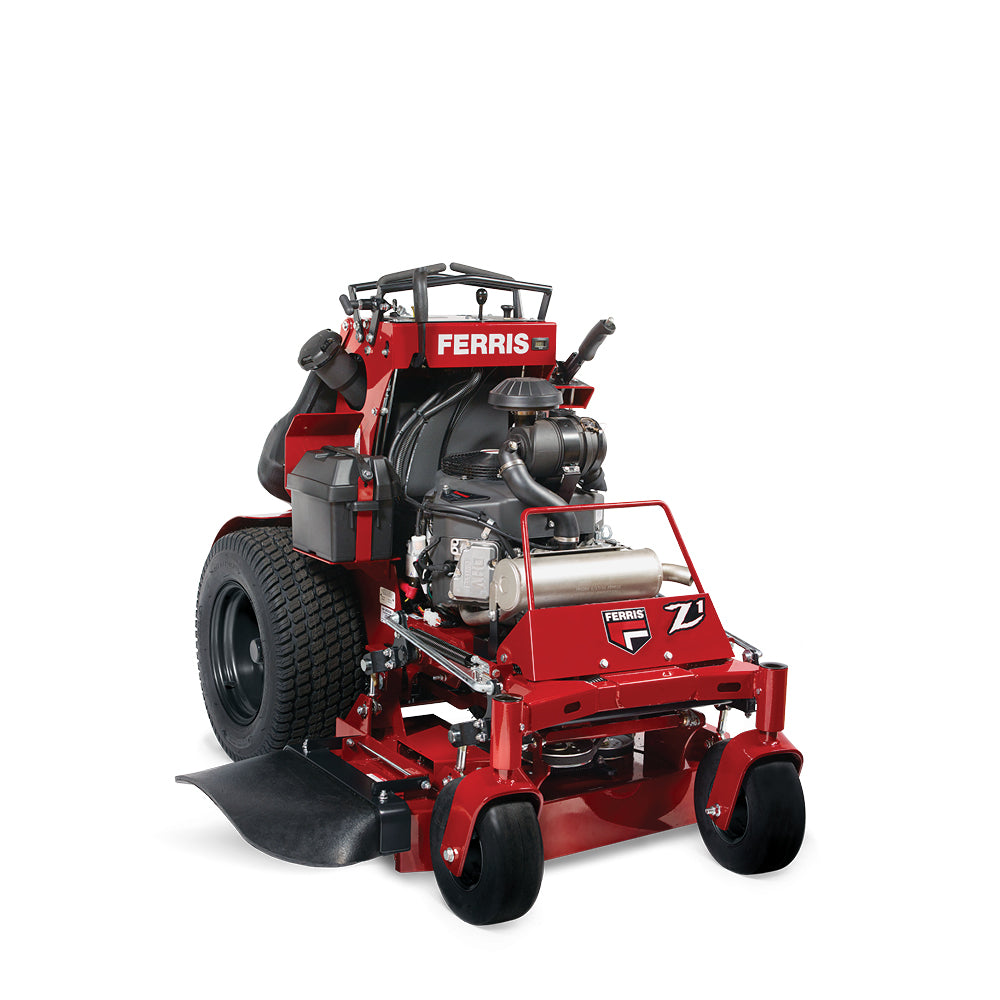

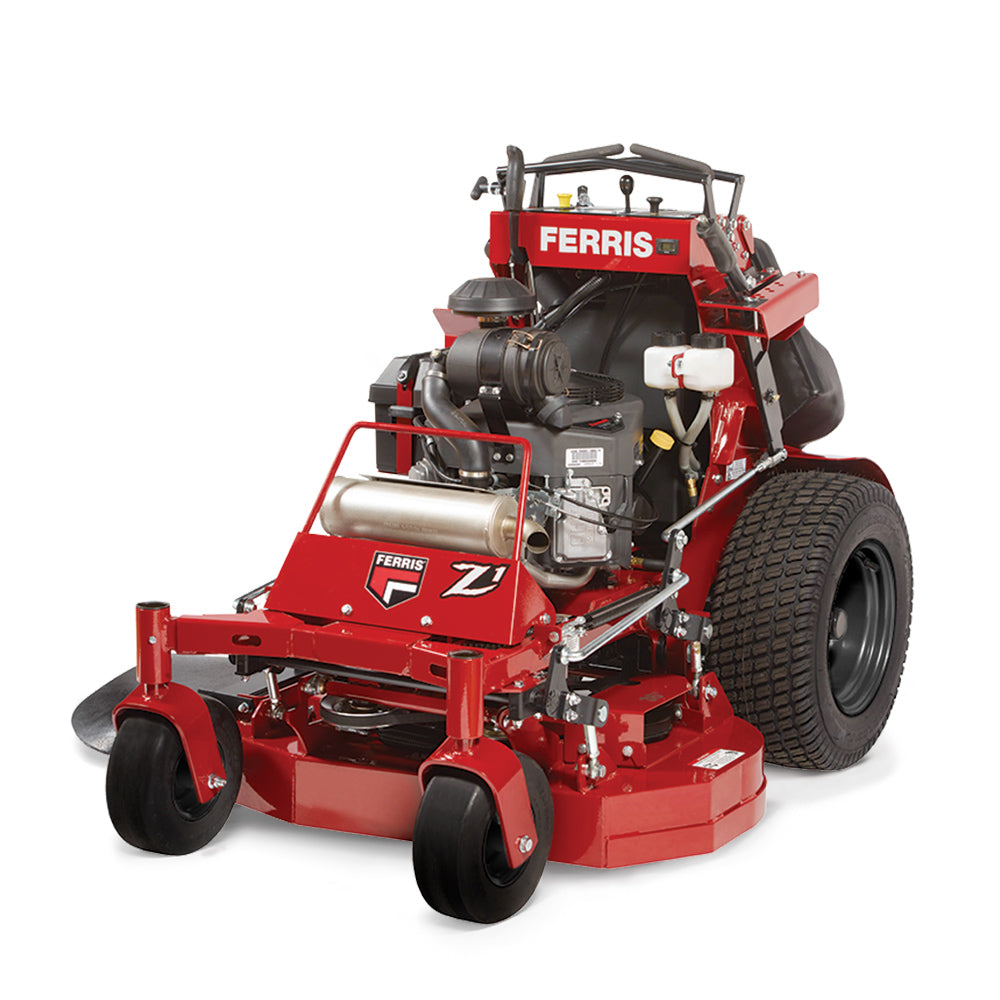

Ideal for tight gates and smaller trailers the SRS Z1 offers excellent productivity in a compact frame. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.

Specifications:

• Engine Brand: Vanguard®
• Engine Power Rating: 23 hp
• Displacement: 627 cc
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Tank Capacity: 6 gallons
• Deck Size: 48 inches
• Cutting Height: 1.75 - 4.5 inches
• Spindles: Aluminum Greaseable
• Suspension: Adjustable coil-over shock; Operator Suspension Platform
• Transmission: Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
• Drive Axles: 1.125 inches
• Drive Tires: 23 x 10.5-12
• Caster Tires: 11 x 4-5, Flat-free
• Ground Speed-Fwd: 0-8 mph
• Ground Speed-Rev: 0-4 mph
• Overall Length: 65 inches
• Overall Width: 59.5 inches (Deflector Down), 54 inches (Deflector Up)
• Dry Weight: 866 lbs
• Seat Package: N/A
• Certified Roll-over Protection System: N/A
• Instrumentation: Dual-function hour meter, fuel level gauge
• Safety Group/Controls: Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
• Parking Brake/Safety Circuit: Hand-operated internal transaxle brake
